Great Detail Inspection of Mobile Electronic Devices

The 5MP VE Series Smart Camera detects small details in high resolution and performs precise parts analyses

The assembly of mobile electronics in a cleanroom environment, such as cell phones, requires outstanding attention to detail. The densely populated electronic parts and connectors on circuit boards are incredibly small, and errors are easily missed by manual inspection. Standard error proofing by employees is impractical and not reliable; however, a parts analysis is required before electronics and cell phones move onto the next assembly station. Missing or improperly placed components leads to malfunctions and extra time and resources on recalls.

Your Benefits

  • More reliable inspection of circuit boards during assembly processes while eliminating human error
  • Flexible mounting of the camera saves both time and money
  • Several tools to adapt to many different applications

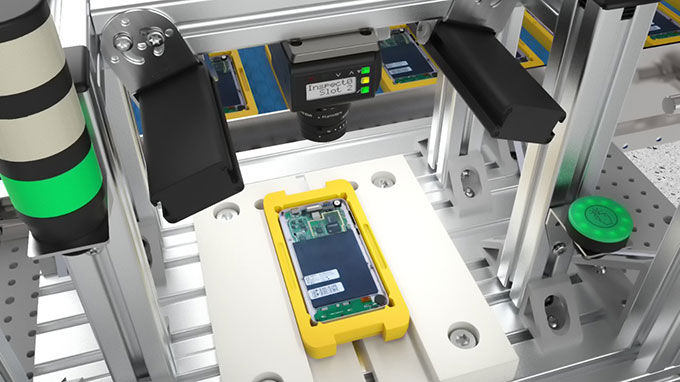

  • The VE Series Smart Camera has an eye for detail during the assembly of mobile electronics

  • Vision applications include item detection, part positioning, feature measurement and flaw analysis

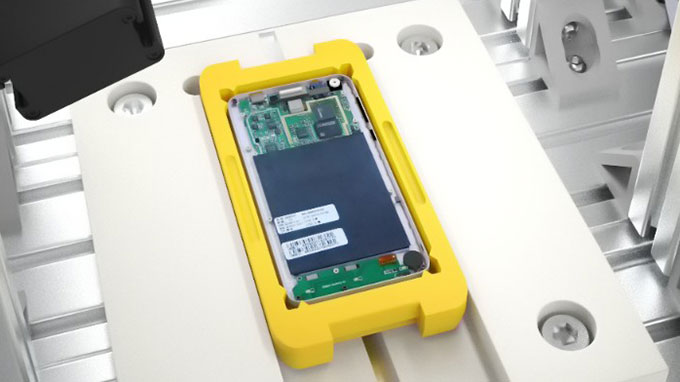

  • Small and complex circuit boards require thorough inspection

Small Part Error Proofing with Five Megapixel Imager

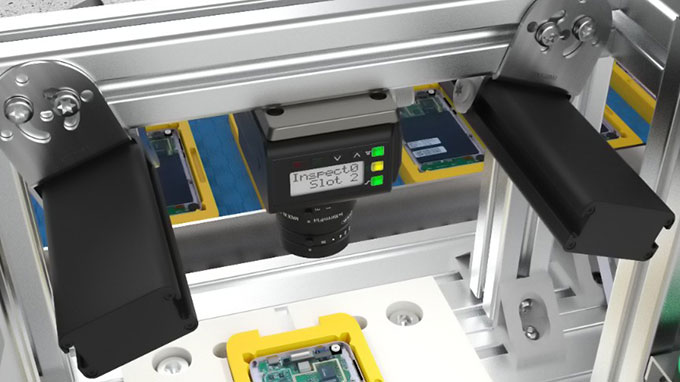

The 5MP VE Series Smart Camera allows for high-resolution inspection of each cell phone during assembly. The versatile camera successfully detects incredibly small details and confirms that all electronic components are in the correct location and orientation with the match tool. The measure tool can also be used to verify that everything is in the proper position.

Using an automatic solution eliminates human error and provides a more reliable solution. A 5MP imager and wide field of view make it possible for a camera to pick up more exceptional detail in single image capture and can be installed closer to the target without compromising quality results. VE smart cameras are easy to install and use. There are a wide variety of tools available, such as the match and blemish tools, to adapt to many different applications.
