Body Shop – Manual Load Weld Cell
Safety light curtain systems protect employees when assembling the machine
In the automotive manufacturing process, there is a variety of semi-automated operations which involve the manual feeding and/or removal of parts.

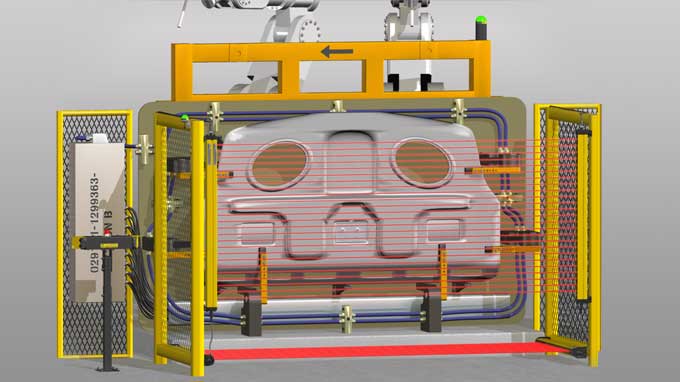

In this application in a robotic weld cell, operators must be protected from hazards that are created by the automation such as pinch points from clamps and feed table movement.
The solution requires a safeguarding method which can detect the presence of a hand reaching into the station as well as protect from a cycle start if personnel are inside the cell.
Your Benefits
- Proven technology for harsh welding environments, ensures reliability and reduced maintenance costs
- On-board alignment and diagnostic aids, for easy installation and maintenance
- Cascadable solution to reduce installation costs
Banner’s EZ-SCREEN® series safety light curtain system is a well established solution for the harsh requirements of welding equipment. With the ability to cascade (series connect) multiple segments together, configurations such as this horizontal/ vertical pair are easily implemented with standard hardware (no master/slave models).
Additionally, the EZ-SCREEN safety light screen has outstanding on-board alignment and diagnostic aids, does not require an external device for programming and can be enhanced with the addition of Banner’s EZ-LIGHT lighted curtain for remote status indication.
